TFX-5000 Ultrasonic Clamp-on Flow Meter

Additional Information

TFX-5000 Ultrasonic Clamp-on Flow Meter

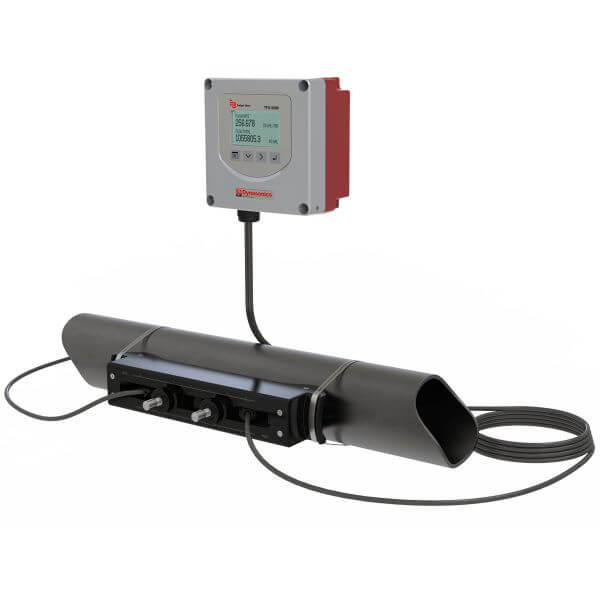

The Dynasonics® TFX-5000 Ultrasonic clamp-on flow meter is quickly and easily installed without cutting or tapping the pipe. This highly capable meter provides advanced features without breaking your budget.



Showing units in US Customary
  • Size Range
    1/2…48 in.
  • Temperature Range
    -40…350 °F
  • Flow Range
    0.7…33,000 gpm
  • Accuracy
    ± 0.5% ±0.025 ft/s (0.008 m/s)



Simple Clamp-on Design. Streamlined Installation.



The Dynasonics TFX-5000 Ultrasonic clamp-on flow meter reduces installation time and cost because operations can continue during installation, which can be completed in under an hour by a single person.

  • Non-Invasive/Non-Contact. These meters easily attach to a pipe’s exterior and are secured in place without ever penetrating the pipe or coming in contact with the internal liquid. This feature is especially beneficial in settings where the liquid should not be exposed, such as caustic liquids, raw sewage or ultrapure water.
  • Flexible Configuration. Available in a variety of configurations, allowing you to select the meter that’s best for your specific application.
  • Minimal Maintenance. Has no moving parts, which virtually eliminates the need for maintenance or part replacement over the meter’s lifetime.




Product Certifications

General Safety (all models):
cCSAus, CE, Pollution Degree 2, CE compliance to Low Voltage Directive, 2014/35/EU

U.S./Canada Hazardous Location transmitter and transducers:
Transmitter and transducers (certification option B): cCSAus Class I Division 2 Groups ABCD T4
Requires flexible conduit
Not available with UZ, HZ or JZ and KZ (Easy Rail) transducers, Auxiliary Dry Contact card or units with AquaCUE/BEACON endpoints

Transmitter (certification option R):
cCSAus Ex ec ic nC IIC T4 Gc; Ex tc IIIB T100° C Dc; Class I, Zone 2, AEx ec ic nC IIC T4 Gc; Zone 22,
AEx tc IIIB T100° C Dc; Class II, Division 2, Groups FG; Class III
Not available with Auxiliary Dry Contact card or units with AquaCUE/BEACON endpoints

Transducers RZ LZ, NZ, RZ, WZ, YZ (certification option R):
cCSAus Ex ec IIC T6 Gc; Ex tc IIIB T60° C Dc; Class I, Zone 2, AEx ec IIC T6 Gc; Zone 22, AEx tc IIIB T60° C Dc; Class II, Division 2, Groups FG;
Class III
Requires flexible conduit
Not available with CA-CT, UZ, HZ or JZ and KZ (Easy Rail) transducers

ATEX Hazardous Location:
Transmitter (certification option V): II 3 G D Ex ec ic nC IIC T4 Gc, Ex tc IIIB T100° C Dc; Tamb: -25…60° C
JZ (DTTJ), KZ (DTTK), LZ (DTTL), NZ (DTTN) and RZ (DTTR) Transducers: II 3 G D Ex ec IIC T6 Gc; Ex tc IIIB T60°C Dc; Tamb: -25…60° C
Not available with UZ, CA to CT, or HZ transducers; flexible conduit, Auxiliary Dry Contact card or AquaCUE/BEACON endpoints

IECEx Hazardous Location:
Transmitter (certification option V): Ex ec nC ic IIC T4 Gc; Ex tc IIIC T100° C Dc; Tamb: -25°C…60° C
JZ, KZ, LZ, NZ and RZ Transducers: Ex ec IIC T6 Gc; Ex tc IIIB T60° C Dc; Tamb: -25…60° C
Not available with UZ, CA to CT, or HZ transducers; flexible conduit, Auxiliary Dry Contact card or AquaCUE/BEACON endpoints


Specifications

Showing units in US Customary
  • Size Range
    1/2…48 in.
  • Temperature Range
    -40…350 °F
  • Flow Range
    0.7…33,000 gpm
  • Accuracy
    ± 0.5% ±0.025 ft/s (0.008 m/s)
  • Repeatability
    ± 0.2%
  • Power Supply
    9…28V DC | 20…26 AC | 85…265 AC
