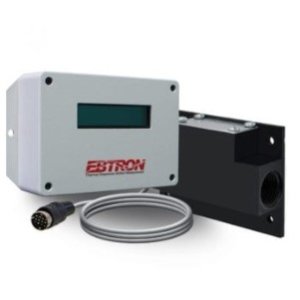

EB-Flow II 2000 Series EF-x2000-T/U
Additional Information
-
Description
The EF-x2000-T/U is EBTRON’s top-of-the-line measurement solution for round ducts between 4 and 16 inches in diameter. Ideal for most small duct airflow measurement and volumetric airflow tracking applications. More features than the EF-x1000-T make this the best choice for all small duct measurement applications.
- Thermal Dispersion Technology
- Cost Effective Single Probe
- NIST-traceable Calibration
- %‐of‐reading Accuracy
- Airflow and Status Alarm
- Temperature Output Capability
- Analog and RS‐485 Output Models
- Dry Contact Relay
- Remote Transmitter with LCD Display
- 3‐year Warranty
-
Quick Specs
Installed Airflow Accuracy
T: Typically better than ±3% of reading
U:≤ 8 sq.ft. [0.74 sq.m.]:±(3% to 15%), typical (increases with increasing opening size). May be improved by field adjustment using the Field Adjust Wizard (FAW) to a reliable reference. > 8 sq.ft. [0.74 sq.m.]: Not recommended.
Mounting Options & Size Limits
T: Insertion; 4, 5, 6, 7, 8, 9, 10, 12, 14, and 16 inch round [101.6, 127.0, 152.4, 177.8, 203.2, 228.6, 254.0, 304.8, 355.6 & 406.4 mm]
U: Insertion: 6, 8 or 16 in. [152.4, 203.2 or 406.4 mm] (adjustable); Stand-off: 6, 8 or 16 in. [152.4, 203.2 or 406.4 mm] (adjustable)
Power Requirement
24 VAC (22.8 to 26.4 under load) @8V-A
